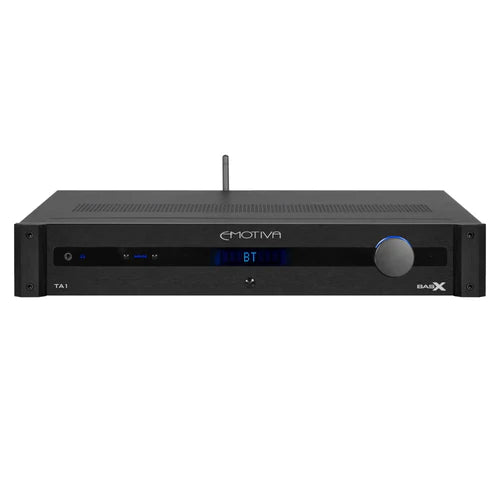

Emotiva TA-1

Analog Inputs

• 2 pairs - stereo analog line level inputs (CD, Aux).
• 1 pair - stereo phono inputs (switchable; moving magnet or moving coil).
• Tuner - FM (with external antenna input; 15 station presets).

Digital Inputs

• 1 - digital coax (S/PDIF); 24/192k.
• 1 - digital optical (Toslink); 24/192k.
• 1 - digital USB (DAC input); 24/192k.
• 1 - Bluetooth receiver (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).

Outputs

• 1 pair - stereo full range main outputs.
• 1 pair - stereo high-pass outputs; with fixed 90 Hz Linkwitz-Riley high-pass filter.
• 1 - subwoofer output; with fixed 90 Hz Linkwitz-Riley low-pass filter.
• 1 - high performance stereo headphone output.

Analog Performance (line level)

• Maximum output level: 4 VRMS.
• Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
• THD+noise: < 0.001% (A-weighted).
• IMD: < 0.004% (SMPTE).
• S/N ratio: > 120 dB.
• Crosstalk: < 90 dB.

Analog Performance (speaker outputs)

• 60 watts RMS/channel; 8 Ohms; both channels driven; 20 Hz – 20 kHz; THD < 0.02%.
• 100 watts RMS/channel; 4 Ohms; both channels driven; at 1 kHz; THD < 1%.
• Minimum load impedance: 4 Ohms.
• Rated impedance: 8 Ohms.
• Frequency response: 20 Hz to 20 kHz +/- 0.15 dB; 5 Hz to 80 kHz +0/-1.8 dB.
• S/N ratio: > 116 dB.

Analog Performance (phono)

• Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
• THD+noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
• S/N ratio: > 78 dB (ref 5 mV; MM); > 58 dB (ref 0.5 mV; MC).
• Gain (ref unity gain on main outputs at 1 kHz): 44 dB (MM); 55 dB (MC).

Analog Performance (headphone)

Power Output:

• 8 Ohms: 23 mW / channel.
• 33 Ohms: 90 mW / channel.
• 47 Ohms: 127 mW / channel.
• 150 Ohms: 145 mW / channel.
• 300 Ohms: 114 mW / channel.
• 600 Ohms: 75 mW / channel.

Digital Performance

• Frequency response:
  5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
  5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
• THD+noise: < 0.003% (A-weighted; all sample rates).
• IMD: < 0.007% (SMPTE).
• S/N ratio: > 110 dB ref rated output.

Trigger

12 VDC trigger output.

Power Requirements

Universal SMPS which accepts anywhere between 100 VAC and 240 VAC.

Controls And Indicators

• Power: rocker switch; rear panel.
• Standby: one front panel push.
• Two front panel pushbuttons: Input Select; menu operation.
• One front panel knob: Volume; Tuning; menu operation.
• Display: high visibility blue alphanumeric VFD display (dimmable).
• Remote Control: compact full-function infrared remote control.
• LEDs: amber Standby LED; blue illuminated legends for Input buttons and Headphone output.

Mechanical

• Dimensions:
  17” wide x 2-5/8” high x 12-1/2” deep (unboxed; without connectors).
  21” long x 7” high x 17-1/2” deep (boxed).
• Weight:
  15 lbs (unboxed).
  20 lbs (boxed).
