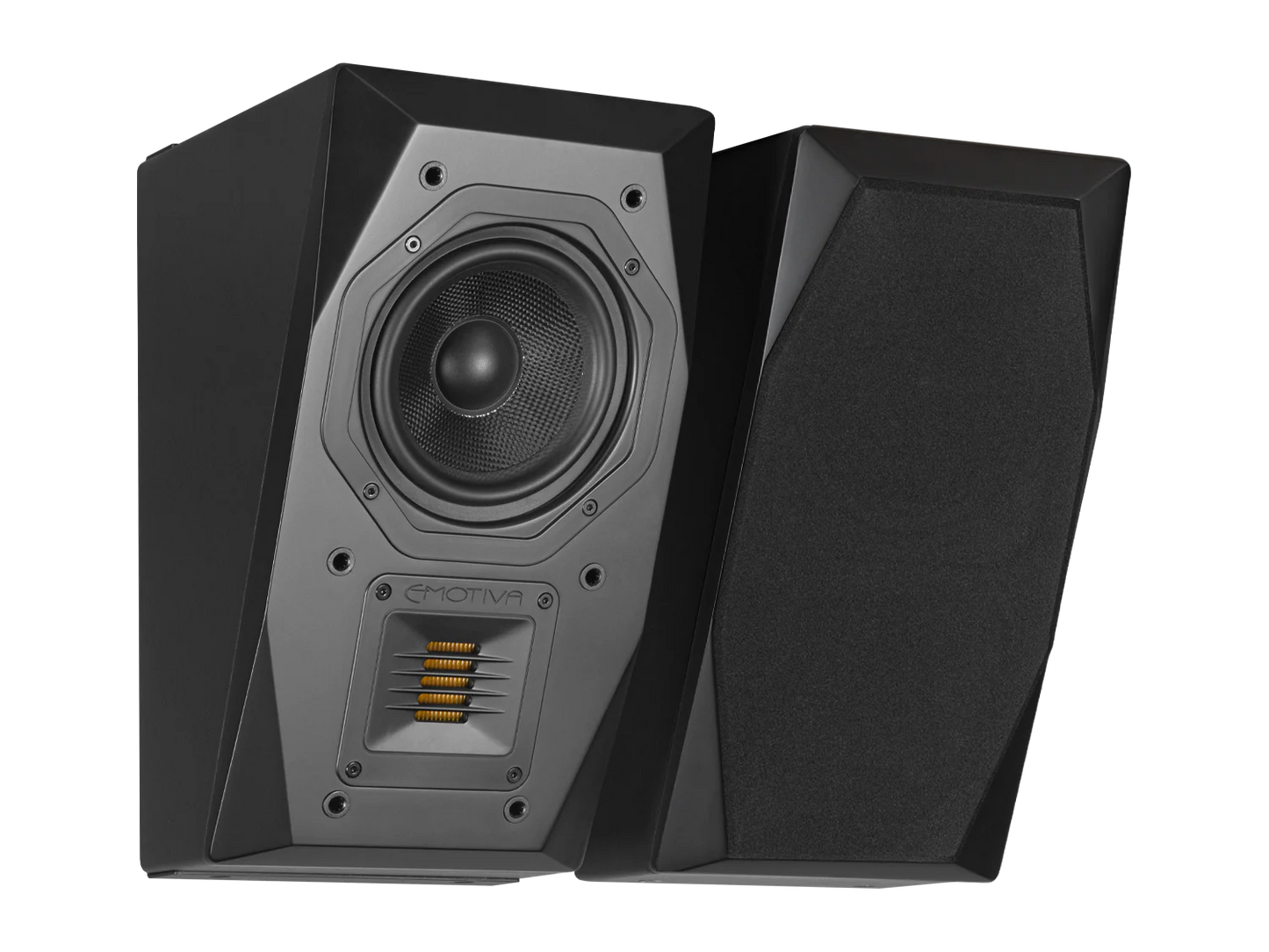

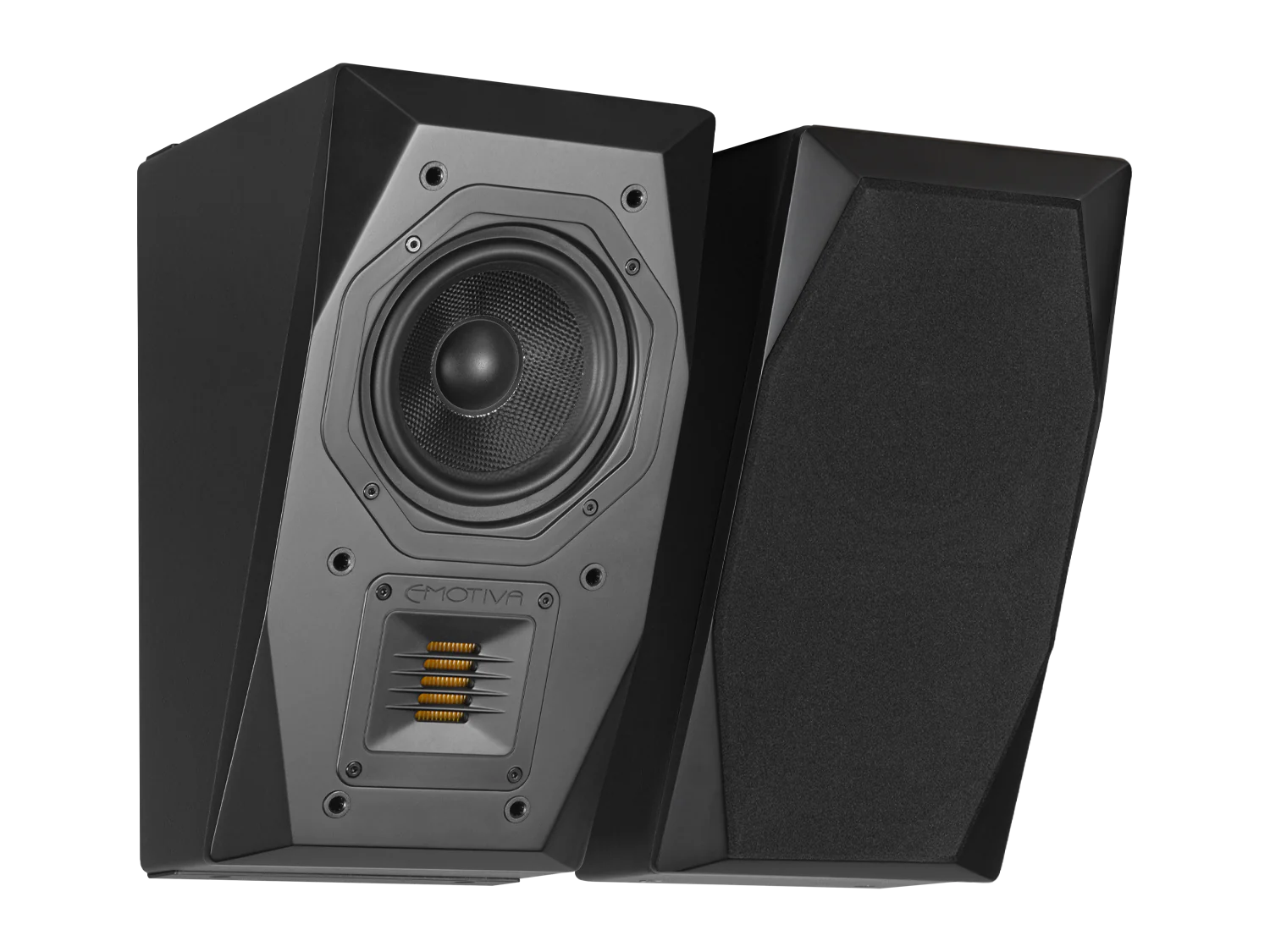

Emotiva A2+ atmos

General

• Configuration: Two way wall or ceiling mounted surround or height channel loudspeaker.
• Cabinet tuning: Sealed.

Driver Complement

• High frequency driver: 32 mm Airmotiv folded ribbon tweeter.
• Low frequency driver: 5-1/4 inch woven fiber cone.

Electrical Specifications

• Efficiency: 85 dB (2.83V/1m).
• Power handling: 80W continuous / 150W peak.
• Nominal impedance: 4 ohms.
• Frequency response: 70 Hz – 28 kHz (+3/-3 dB).

Mechanical

• Dimensions: 12-1/2 inches high x 7 inches wide x 8-1/2 inches deep.
• Weight: 8.8 pounds (unboxed).
• Mounting: Easy-Secure mounting system, with solid steel mounting bracket, for secure attachment to wall or ceiling.
• Grille: Black cloth over a rigid frame; attaches securely with mechanical snap connectors.
