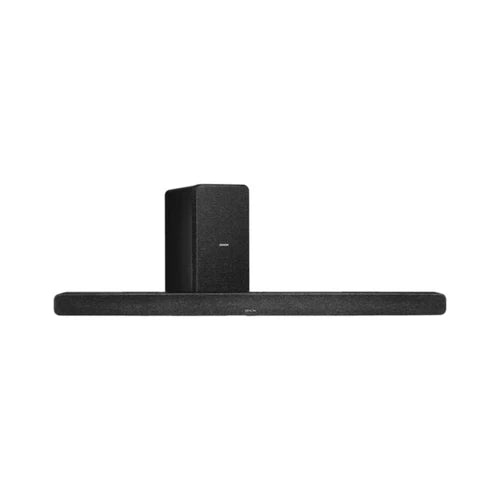

Denon DHT-S517 - Soundbar with Subwoofer

Channel Configuration

3.1.2-Channel

Midrange Drivers

2x 4.7 x 1.6" / 119.4 x 40.6 mm Front-Firing

High-Frequency Drivers

2x 1" / 25.4 mm Front-Firing Tweeter

Full-Range Drivers

1x 1" / 25.4 mm Front-Firing

2x 2.5" / 63.5 mm Up-Firing

Amplifier Output

100W

Enclosure Type

Bass-Reflex

Subwoofer Driver

1x 5.25" / 13.34 cm (Front-Firing)

Subwoofer Amplifier Output

50 W

Subwoofer Inputs/Outputs

Wireless

Inputs

1x HDMI - Audio/Video

1x Optical TOSLINK - Audio

1x 1/8" / 3.5 mm - Audio

Outputs

1x HDMI - eARC

USB I/O

1x USB-A (Unspecified Interface) (Audio) (Rear)

Ethernet I/O

No

Wireless Audio Protocols

Bluetooth

Wireless

Bluetooth 5.0

Bluetooth

5.0

NFC

No

Bluetooth Profiles

A2DP 1.3, AVRCP 1.6

Bluetooth Codec Support

SBC

Bluetooth Frequency Response

20 Hz to 20 kHz

Wireless Range

32.8' / 10 m

Audio Decoding

Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM

Sampling Frequencies

32, 44.1, 48 kHz

HDMI Compliance

ARC, eARC

Power Consumption

40 W (Soundbar)

0.4 W (Soundbar, Standby)

40 W (Subwoofer)

0.3 W (Subwoofer, Standby)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Operating Temperature

41 to 95°F / 5 to 35°C

Environmental Protection

No

Wall Mountable

Yes

Dimensions

41.3 x 2.3 x 3.8" / 104.9 x 5.8 x 9.7 cm (Soundbar)

6.7 x 14.5 x 11.4" / 17 x 36.8 x 29 cm (Subwoofer)

Box Dimensions (LxWxH)

44.5 x 17.88 x 9.25"

Weight

5.5 lb / 2.5 kg (Soundbar)

9.5 lb / 4.3 kg (Subwoofer)

Package Weight

21.3 lb
